Renesas EK-RX671

From SEGGER Knowledge Base
Jump to navigation Jump to search

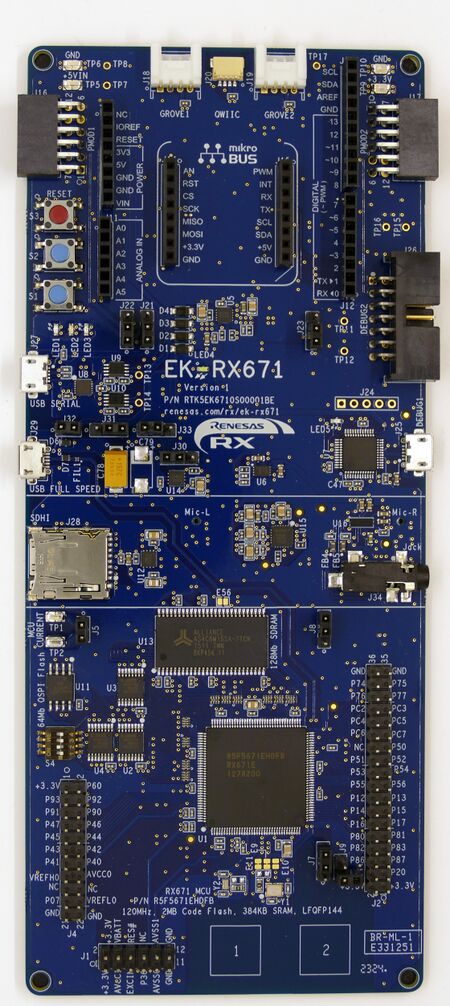

Renesas EK-RX671 board.jpg

Preparing for J-Link

  • Connect the J-Link to J26 connector using J-Link RX adapter
  • Power the board via J27 or J25 USB connector.

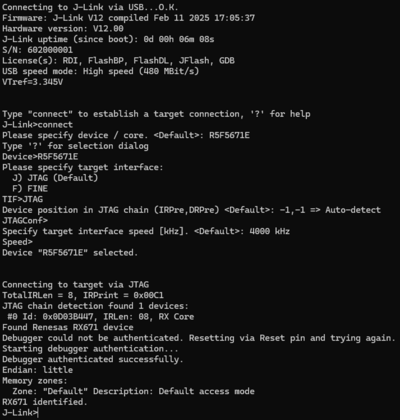

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Renesas EK-RX671 connect.png
