Renesas EK-RX261

From SEGGER Knowledge Base
Jump to navigation Jump to search

This article describes specifics for the Renesas EK-RX261 evaluation board.

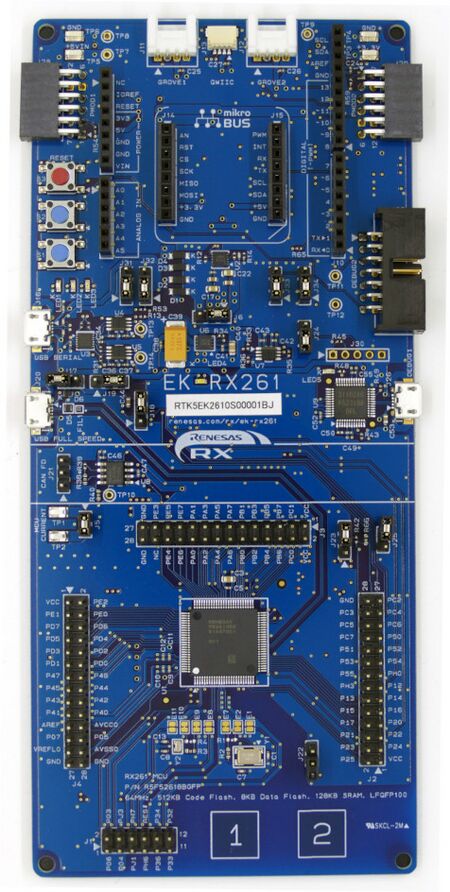

Renesas EK-RX261.jpg

Preparing for J-Link

  • Connect J-Link to J27 via J-Link RX adapter (Make sure that adapter is jumpered to "FINE" TIF option)
  • Power the board via J26 (micro USB)
  • Make sure that J24 is closed (disables on-board debug probe)
  • Verify the Connection with e.g. J-Link Commander.
