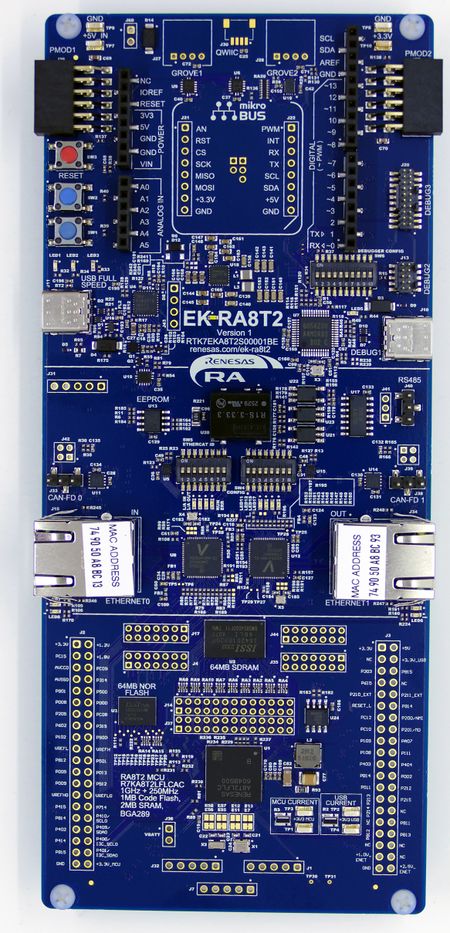

Renesas EK-RA8T2

This article describes specifics for the Renesas EK-RA8T2 evaluation board.

Preparing for J-Link

• Connect the J-Link to the 10-pin connector (J13)
• Power the board via USB-C (J10)

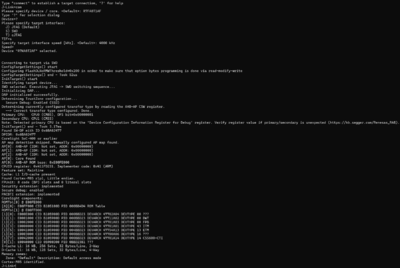

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas EK-RA8T2.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.30
• Hardware: Renesas EK-RA8T2
• Link: File:Renesas R7KA8T2AF TestProject ES V830.zip
