This article describes specifics for the Renesas EK-RA6W1 evaluation board with when used with a daughter board carrying the R7SA6W1AE target device.

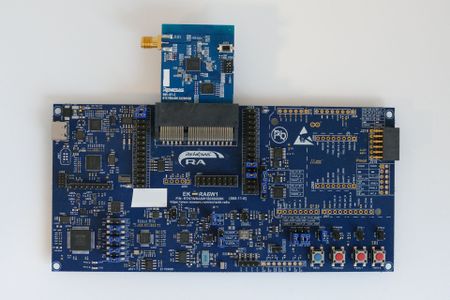

Renesas EK-RA6W1 DB-R7SA6W1AE.jpg

Preparing for J-Link

  • Connect the J-Link to J403 with 9-Pin Cortex-M Adapter.
  • Power the board via USB-C on J1.
  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Renesas R7SA6W1AE connect.png
