This article describes specifics for the Renesas EK-RA6W1 evaluation board.

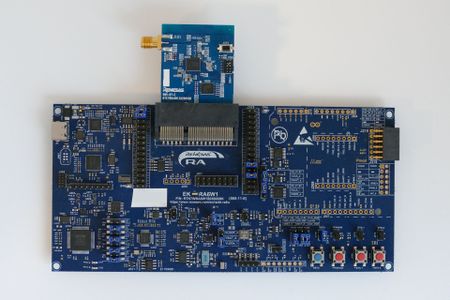

Renesas EK-RA6W1.jpg

Preparing for J-Link

  • Connect the J-Link to J403 with 9-Pin Cortex-M Adapter.
  • Power the board via USB-C on J1.

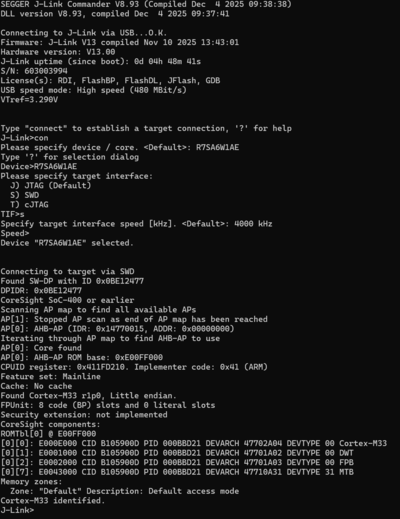

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Renesas R7SA6W1AE connect.png
