Renesas EK-RA4L1

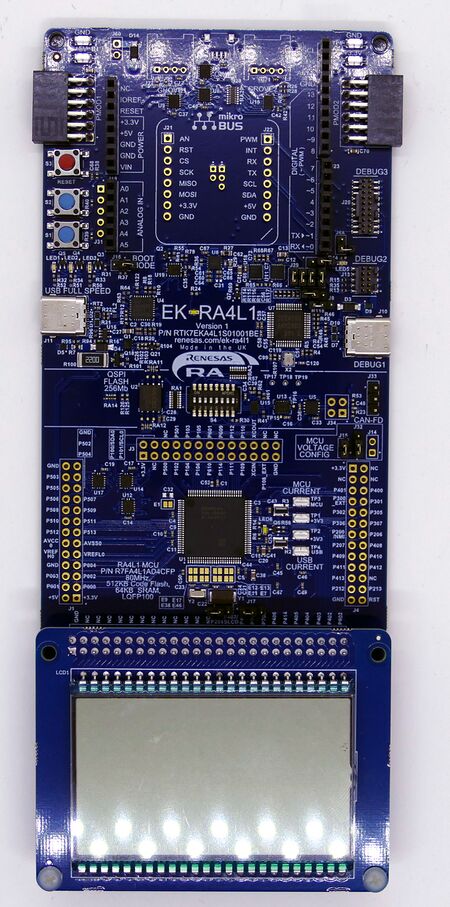

This article describes specifics for the Renesas EK-RA4L1 evaluation board.

Preparing for J-Link

• Connect the J-Link to J20.
• Power the board via J11.
• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas EK-RA4L1.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V7.20
• Hardware: Renesas EK-RA4L1
• Link: File:Renesas R7FA4L1 TestProject ES 7V20.zip
