Renesas EK-RA2L2

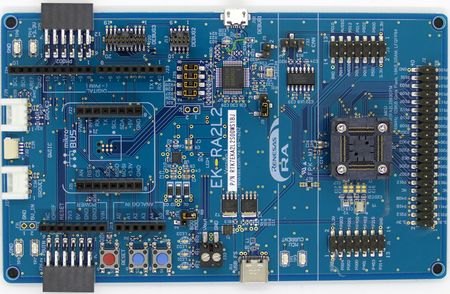

This article describes specifics for the Renesas EK-RA2L2 evaluation board.

Preparing for J-Link

• Connect the J-Link to J13 connector.
• Power the board via USB TYPE-C J11 connector.

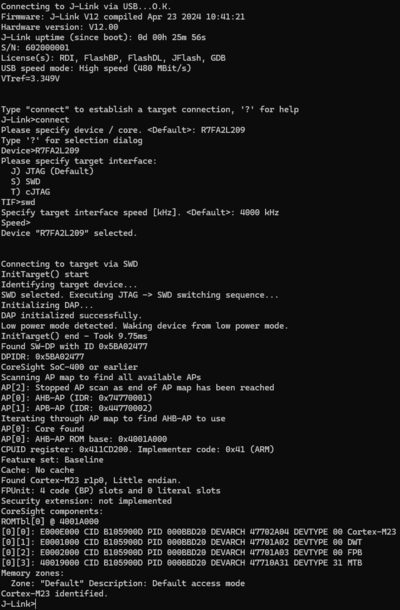

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas EK-RA2L2.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.10
• Hardware: Renesas EK-RA2L2
• Link: File:Renesas EK-RA2L2 TestProject ES V810.zip
