This article describes specifics for the Renesas DA1453x DevKit evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin |
|---|---|---|
| VTref | J1 | 2 |
| GND | J2 | 15 |
| TMS/SWDIO | J1 | 24 |
| TCK/SWCLK | J1 | 22 |
| RESET | J1 | 26 |
- Power the board via USB1.
- you can use the J-Link OB of this board as well.

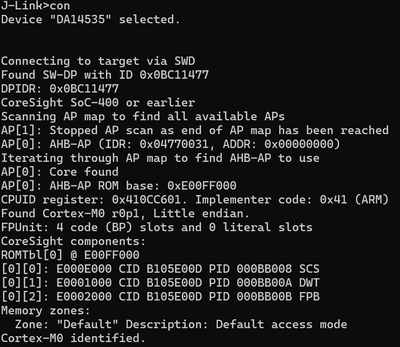

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
