Renesas (FPB)-RA2E3

From SEGGER Knowledge Base
Jump to navigation Jump to search

This article describes specifics for the Renesas (FPB)-RA2E3 evaluation board.

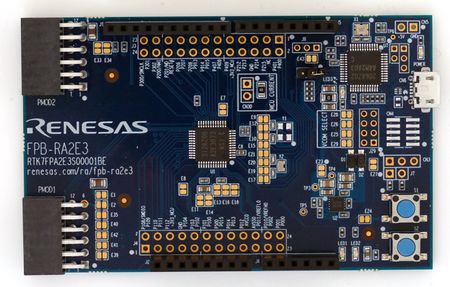

Renesas (FPB)-RA2E3.jpg

Preparing for J-Link

  • Connect the J-Link to the 10 Pin SWD Header (CN4)
  • Power the board via micro USB (CN5)

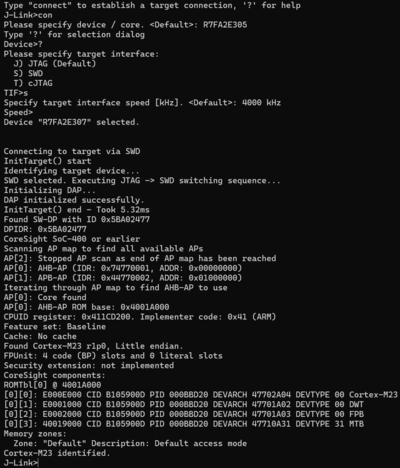

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

RENESAS RA2E3073 CONNECT.PNG
