This article describes specifics for the Raspberry Pi Pimoroni Pico Plus 2 evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
An adapter cable is needed to access the JST SH port Debug via jumper wires.
| Raspberry Pin | J-Link Pin | Signal |
|---|---|---|
| Pad + (3V3) | 1 | VTref |
| Debug Pin 1 | 9 | SWCLK |
| Debug Pin 2 | 4 | GND |
| Debug Pin 3 | 7 | SWDIO |
Note: For a more reliable, simpler solution, the SEGGER Flying Wire Adapter is recommended.
- Power the board via USB-C

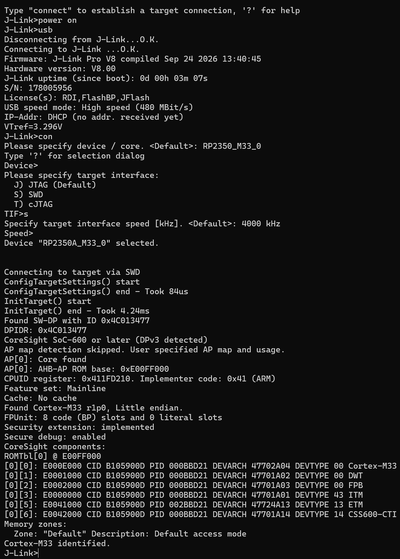

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Raspberry Pi Pi Pimoroni Pico Plus 2.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.30
- Hardware: Raspberry Pi Pi Pimoroni Pico Plus 2
- Link: File:Raspberry Pi RP2350B TestProject ES V830.zip
