RH850 Adapter V2
Jump to navigation
Jump to search
This page contains the technical information of the SEGGER RH850 Adapter. For general information and an overview of the available Flasher adapters, refer to Adapter Overview.
Overview
The RH850 Adapter enables connections between SEGGER Flashers and J-Link debug probes and target hardware featuring Renesas RH850 series MCUs. It adapts the standard 20-pin SEGGER connector to the 14-pin JTAG/UART/SPI connector found on the target hardware.
Pinout

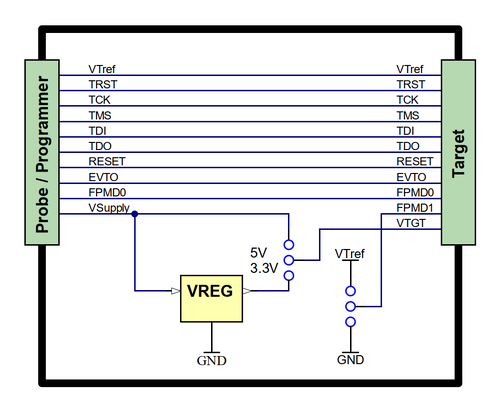

Schematics
