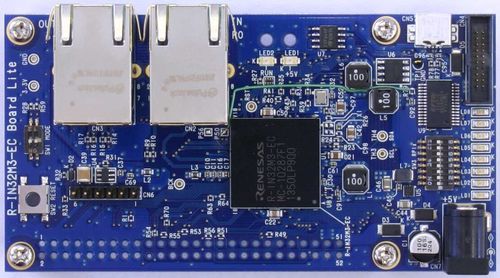

The R-IN32M3-EC Board Lite is a Renesas R-IN32M3 evaluation board.

R-IN32M3-EC Board.jpg

Preparing for J-Link

  • Connect your J-Link to the JTAG connector CN4 of the evaluation board.
  • Power the board via the USB connector CN5.
  • Alternatively, power the board via the power jack CN7.

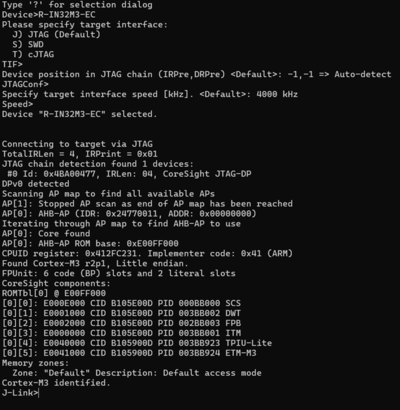

  • Verify the Connection with J-Link Commander. The output should look as follows:

R-IN32M3-EC Connect.png

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the R-IN32M3-EC Board Lite. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup
