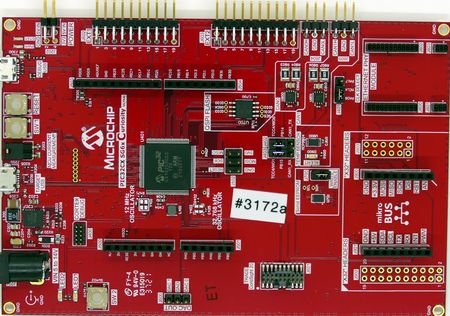

PIC32CX SG6x Curiosity Ultra
This article describes specifics for the Microchip PIC32CX SG6x Curiosity Ultra evaluation board.
SWO Tracing
SWO tracing is supported out of the box for this eval board. J-Link software version V8.88 or later is required.
The following example project can be used with Ozone V3.40d or later: Microchip_PIC32CX1025SG6_SWOExample.zip
The eval board is using PB30 as the SWO pin. Should you be using a different pin you can initialize it as explained here. Alternatively you can contact SEGGER support to receive the J-Link script source file for reference if available.
Tracing on Microchip PIC32CX1025SG41
This section describes how to get started with trace on the Microchip PIC32CX1025SG41 MCUs. This section assumes that there is already a basic knowledge about trace in general (what is trace, what different implementations of trace are there, etc.). If this is not the case, we recommend to read Trace chapter in the J-Link User Manual (UM08001).
Some of the examples are shipped with a compiled .JLinkScriptfile (extension .pex), should you need the original source, please get in touch with SEGGER directly via our support system: https://www.segger.com/ticket/.
To create your own .JLinkScriptfile you can use the following guide as reference: How_to_configure_JLinkScript_files_to_enable_tracingMinimum requirements
In order to use trace on the Microchip PIC32CX1025SG41 MCU devices, the following minimum requirements have to be met:
- J-Link software version V9.24 or later
- Ozone V3.40g or later (if streaming trace and / or the sample project from below shall be used)
- J-Trace PRO version V3.0 or later for streaming trace
- J-Link Plus V12 or later for TMC/ETB trace
To rebuild the project our IDE Embedded Studio can be used. The recommended version to rebuild the projects is V8.24. But the examples are all prebuild and work out-of-the box with Ozone, so rebuilding is not necessary.
The project below has been tested with the minimum requirements mentioned above and a PIC32CX SG6x Curiosity Ultra.
- Example project: Microchip_PIC32CX1025SG41_TraceExample.zip
Streaming trace
Open the *_TracePins.jdebug project contained in the example project in Ozone.
Trace buffer (TMC/ETB)
Open the *_TraceBuffer.jdebug project contained in the example project in Ozone.
Tested Hardware
Specifics/Limitations
Please note that when buffer tracing make sure that in the first 32 kB sector of RAM no code is placed as that memory is shared with the on chip trace buffer.
Reference trace signal quality
The following pictures show oscilloscope measurements of trace signals output by the "Tested Hardware" using the example project. All measurements have been performed using a Agilent InfiniiVision DSO7034B 350 MHz 2GSa/s oscilloscope and 1156A 1.5 GHz Active Probes. If your trace signals look similar on your trace hardware, chances are good that tracing will work out-of-the-box using the example project. More information about correct trace timing can be found at the following website.
Trace clock signal quality

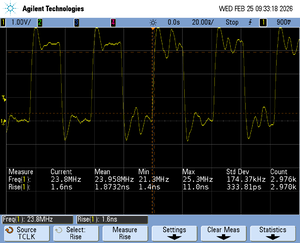

The trace clock signal quality shows multiple trace clock cycles on the tested hardware as reference.
Rise time

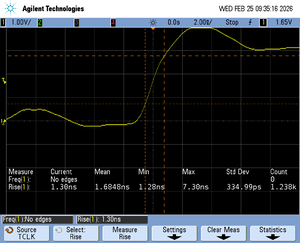

The rise time of a signal shows the time needed for a signal to rise from logical 0 to logical 1. For this the values at 10% and 90% of the expected voltage level get used as markers. The following picture shows such a measurement for the trace clock signal.
Setup time

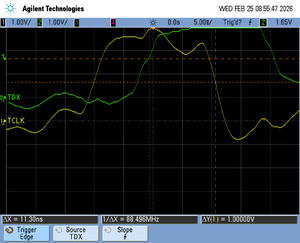

The setup time shows the relative setup time between a trace data signal and trace clock. The measurement markers are set at 50% of the expected voltage level respectively. The following picture shows such a measurement for the trace data signal 0 relative to the trace clock signal.
