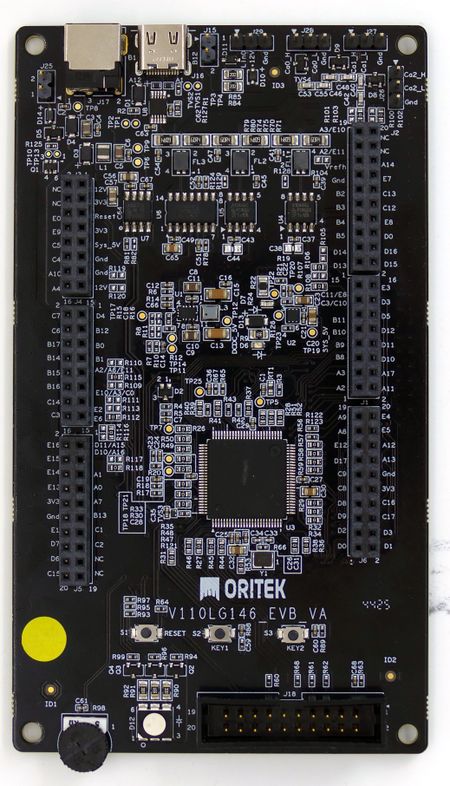

This article describes specifics for the ORITEK V110LG146_EVB_VA evaluation board.
Preparing for J-Link
- Connect the J-Link to J18 (20-pin JTAG connector).
- Power the board via J16 (USB C).

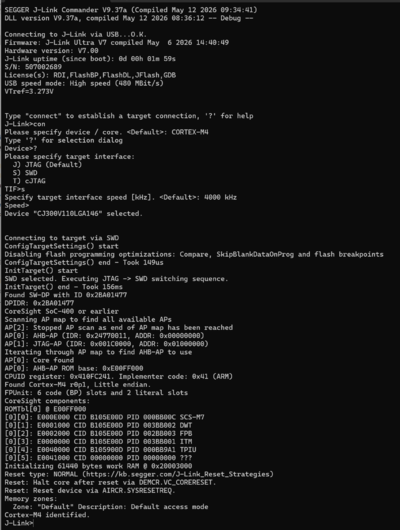

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ORITEK V110LG146_EVB_VA.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.28
- Hardware: ORITEK V110LG146_EVB_VA
- Link: File:ORITEK CJ300V110LG146 TestProject ES V828.zip
