Nuvoton NuTiny-SDK-Mini58

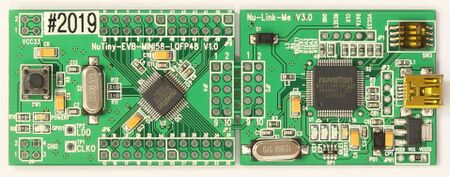

This article describes specifics for the Nuvoton NuTiny-SDK-Mini58 evaluation board.

Preparing for J-Link

• Seperate the Mini58 board from the Nu-Link debug board
• Connect the J-Link to the SWD header (JP4) on the board. VTref=JP4-2 / SWDIO=JP4-4 / SWCLK=JP4-6 / SWO=JP4-8 / GND=JP4-10
• Power the board via the pin header J1

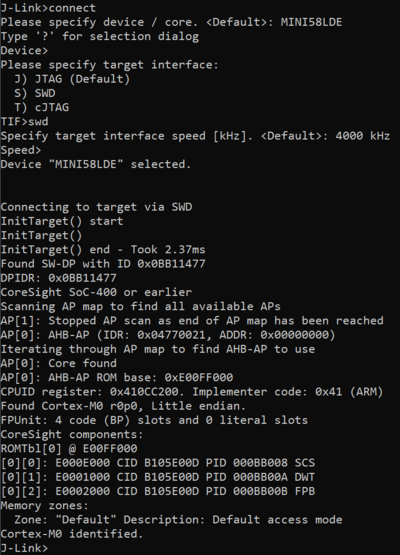

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuTiny-SDK-Mini58.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.20
• Hardware: Nuvoton NuTiny-SDK-Mini58
• Link: File:Nuvoton NuTiny-SDK-Mini58 TestProject ES V820.zip
