Nuvoton NuTiny-EVB-NUC442

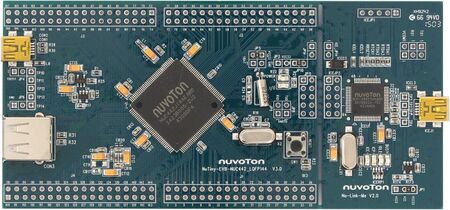

This article describes specifics for the Nuvoton NuTiny-EVB-NUC442 evaluation board.

Preparing for J-Link

• Connect the J-Link to the SWD header (JP11) on the board. VTref=JP11-2 / SWDIO=JP11-4 / SWCLK=JP11-6 / SWO=JP11-8 / GND=JP11-10
• Power the board via USB (ICEJ1)

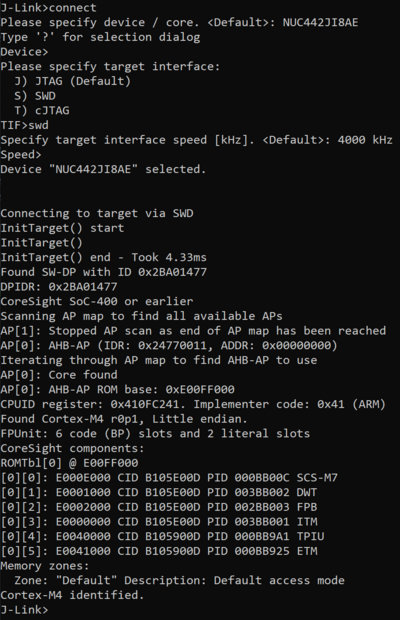

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuTiny-EVB-NUC442.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.20
• Hardware: Nuvoton NuTiny-EVB-NUC442
• Link: File:Nuvoton NuTiny-EVB-NUC442 TestProject ES V820.zip
