This article describes specifics for the Nuvoton NuTiny-EVB-NUC140 evaluation board.
File:Nuvoton NuTiny-EVB-NUC140.jpg

Preparing for J-Link

  • Connect the J-Link to the SWD header (JP4) on the board. VTref=JP4-2 / SWDIO=JP4-4 / SWCLK=JP4-6 / SWO=JP4-8 / GND=JP4-10
  • Power the board via USB

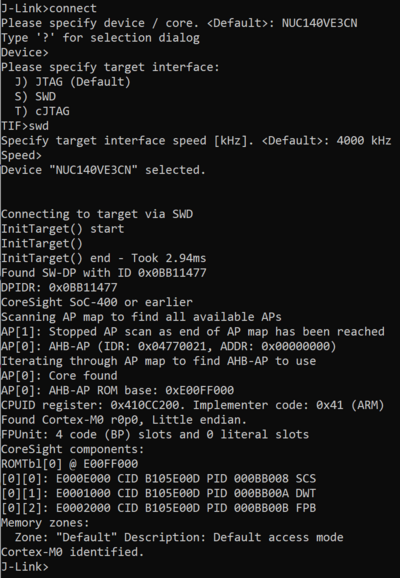

  • Verify the Connection with J-Link Commander. The output should look as follows:

Nuvoton NuTiny-EVB-NUC140 Connect.PNG

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuTiny-EVB-NUC140.
It is a simple Hello World sample linked into the internal flash.

SETUP
