Nuvoton NuTiny-EVB-NUC123

This article describes specifics for the Nuvoton NuTiny-EVB-NUC123 evaluation board.
File:Nuvoton NuTiny-EVB-NUC123.jpg

Preparing for J-Link

• Seperate the Nu-Link board from the actual NUC123 evalboard
• Connect the J-Link to the SWD header (JP3) on the board. VTref=JP3-2 / SWDIO=JP3-4 / SWCLK=JP3-6 / SWO=JP3-8 / GND=JP3-10
• Power the board via USB (JP4)

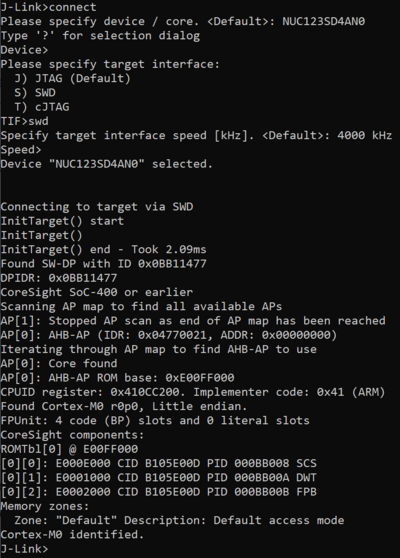

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuTiny-EVB-NUC123.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.20
• Hardware: Nuvoton NuTiny-EVB-NUC123
• Link: File:Nuvoton NuTiny-EVB-NUC123 TestProject ES V820.zip
