Nuvoton NuTiny-EVB-M058SSAN

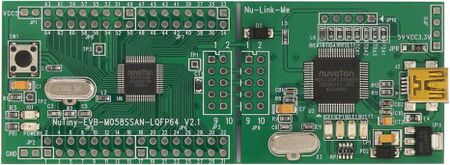

This article describes specifics for the Nuvoton NuTiny-EVB-M08SSAN evaluation board.

Preparing for J-Link

• Seperate the Nu-Link board from the actual M08SSAN evalboard
• Connect the J-Link to the SWD header (JP3) on the board. VTref=JP3-2 / SWDIO=JP3-4 / SWCLK=JP3-6 / SWO=JP3-8 / GND=JP3-10
• Power the board via the pin header JP1

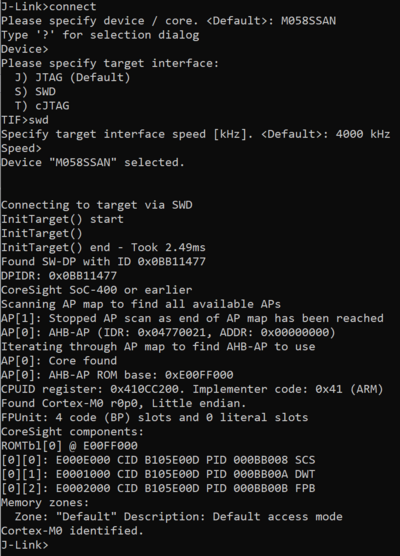

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuTiny-EVB-M08SSAN.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.20
• Hardware: Nuvoton NuTiny-EVB-M08SSAN
• Link: File:Nuvoton NuTiny-EVB-M08SSAN TestProject ES V820.zip
