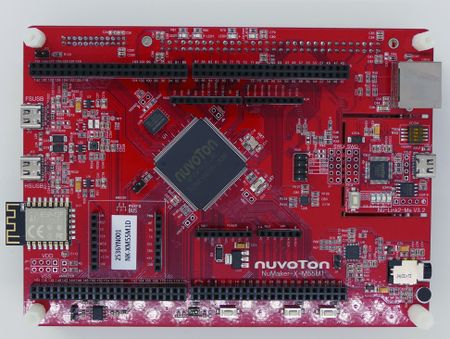

This article describes specifics for the Nuvoton NuMaker-X-M55M1 evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Name |
|---|---|---|
| VTref | J1 | VCC |
| GND | J1 | VSS |
| TMS/SWDIO | J1 | ICE_DAT |
| TCK/SWCLK | J1 | ICE_CLK |
| RESET | J1 | nReset |
- Power the board via USB-C.

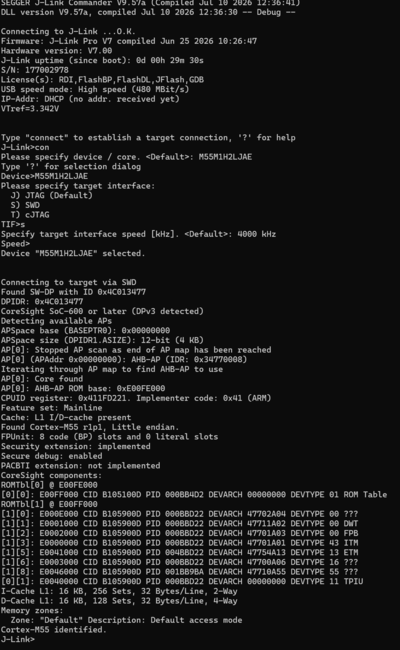

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the [SiliconVendor] [EvalBoardName].
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.28
- Hardware: Nuvoton NuMaker-X-M55M1
- Link: File:Nuvoton M55M1H2LJAE TestProject ES V828.zip
