Nuvoton NuMaker-PFM-M487

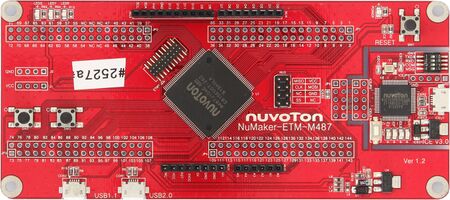

This article describes specifics for the Nuvoton NuMaker-PFM-M487 evaluation board.

Preparing for J-Link

• Connect the J-Link to the SWD header (JP1) on the board. VTref=JP1-2 / SWDIO=JP1-4 / SWCLK=JP1-6 / SWO=JP1-8 / GND=JP1-10
• Power the board via USB (ICEJ)

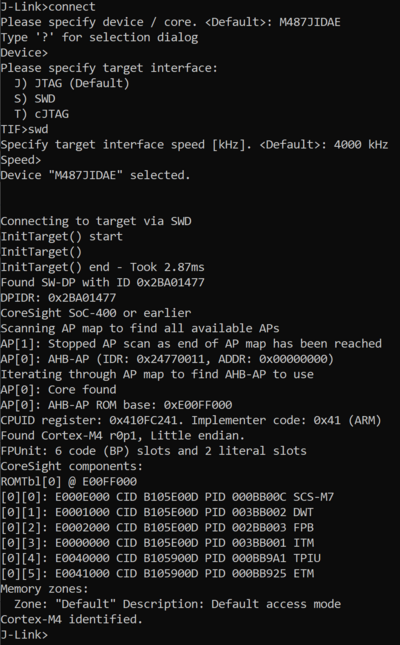

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuMaker-PFM-M487.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.20
• Hardware: Nuvoton NuMaker-PFM-M487
• Link: File:Nuvoton NuMaker-PFM-M487 TestProject ES V820.zip
