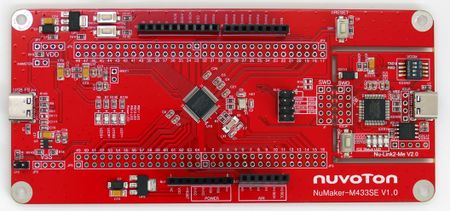

This article describes specifics for the Nuvoton NuMaker-M433SE evaluation board.
Preparing for J-Link
Connect the J-Link pins as follows:
| J-Link pin | Board pin |
|---|---|
| VTref | VCC |
| SWDIO | ICE_DAT |
| SWCLK | ICE_CLK |
| RESET | nRESET |
| GND | VSS |

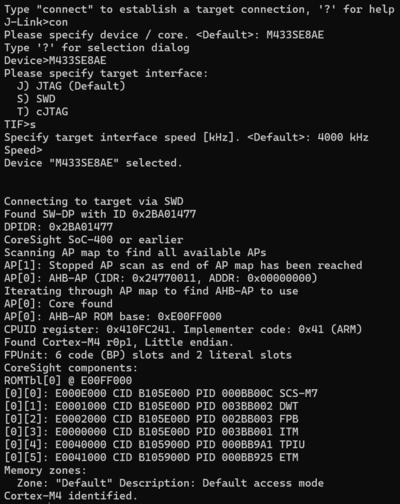

Power the board via USB and verify the connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuMaker-M433SE V1.0. It is a simple "Hello world" program linked into the internal flash.
Setup
- Embedded Studio: V8.22a
- Hardware: Nuvoton NuMaker-M433SE V1.0
- Download example project
