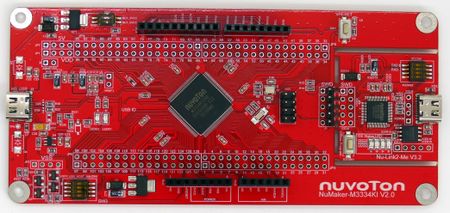

This article describes specifics for the Nuvoton NuMaker-M3334KI evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J1 | 2 | VCC |
| GND | J1 | 10 | VSS |
| SWDIO | J1 | 4 | ICE_DAT |
| SWCLK | J1 | 6 | ICE_CLK |
| RESET | J1 | 8 | nRESET |
- Power the board via the ICE USB connector.

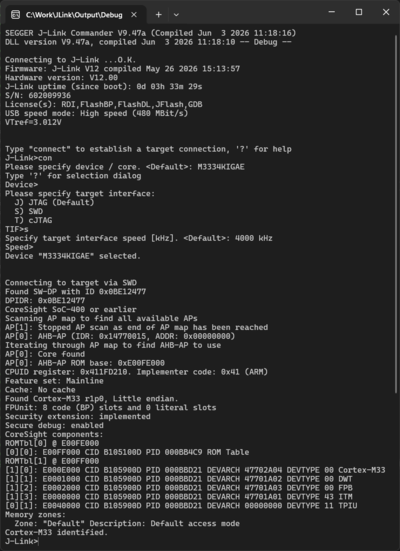

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuMaker-M3334KI.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.22
- Hardware: Nuvoton NuMaker-M3334KI
- Link: File:NUVOTON NUMAKER-M3334KI TestProject ES V822.zip
