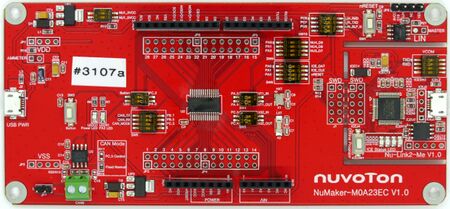

This article describes specifics for the Nuvoton NuMaker-M0A23EC evaluation board.
Nuvoton NuMaker-M0A23EC.jpg

Preparing for J-Link

  • Connect the J-Link to the SWD header (J1) on the board. VTref=JP3-2 / SWDIO=JP3-4 / SWCLK=JP3-6 / SWO=JP3-8 / GND=JP3-10
  • Power the board via the pin header ICE-J3

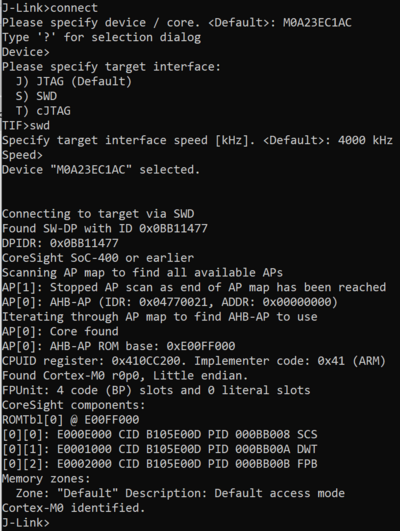

  • Verify the Connection with J-Link Commander. The output should look as follows:

Nuvoton NuMaker-M0A23EC Connect.PNG

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuMaker-M0A23EC.
It is a simple Hello World sample linked into the internal flash.

SETUP
