Nuvoton NuMaker-M031TB

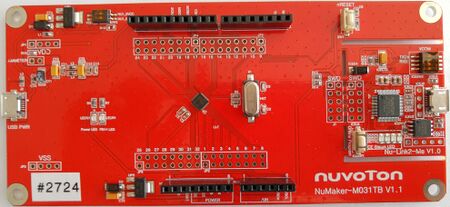

This article describes specifics for the Nuvoton NuMaker-M031TB evaluation board.

Preparing for J-Link

• Connect the J-Link to the SWD header (J1) on the board. VTref=JP3-2 / SWDIO=JP3-4 / SWCLK=JP3-6 / SWO=JP3-8 / GND=JP3-10
• Power the board via the pin header ICE-J3

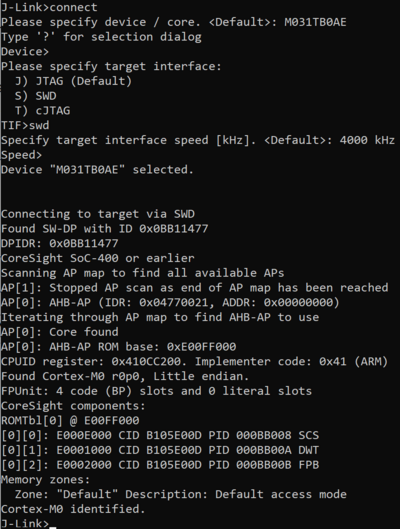

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nuvoton NuMaker-M031TB.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.20
• Hardware: Nuvoton NuMaker-M031TB
• Configuration: Release_MinSize (Due to small RAM size)
• Link: File:Nuvoton NuMaker-M031TB TestProject ES V820.zip
