This article describes specifics for the Nordic nRF54LS05-DK evaluation board.
Preparing for J-Link
- Connect the J-Link to P15.
- Power the board via J3 (USB-C)
- Turn on the power using SW1 switch.
- Board has an on-board J-Link, which can be used alterntively.

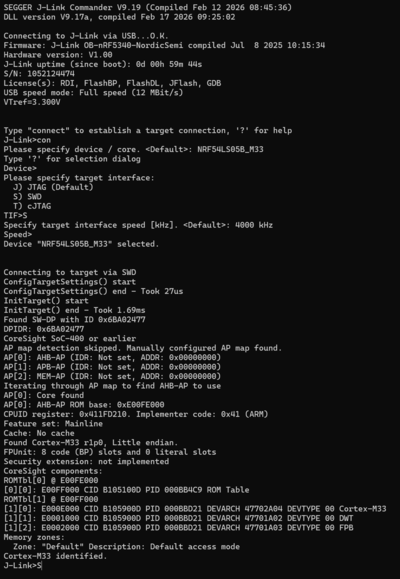

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nordic nRF54LS05-DK.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.26b
- Hardware: Nordic nRF54LS05-DK
- Link: File:Nordic nRF54LS05 TestProject ES v826b.zip
