Nordic nRF54L20-QFN-PDK

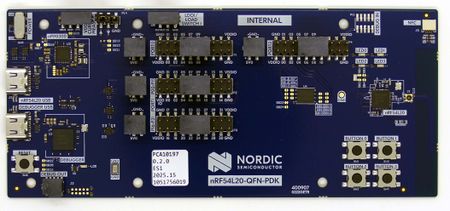

This article describes specifics for the Nordic nRF54L20-QFN-PDK evaluation board.

Preparing for J-Link

• Connect the J-Link to P13.
• Power the board via J4.
• Turn on the power using SW5 switch.
• Board has on-board J-Link, which can be used alterntively.

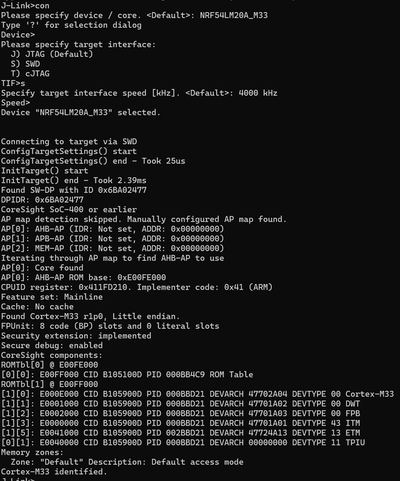

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nordic nRF54L20-QFN-PDK.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V7.20
• Hardware: Nordic nRF54L20-QFN-PDK
• Link: File:Nordic nRF54LM20 TestProject ES 7V20.zip
