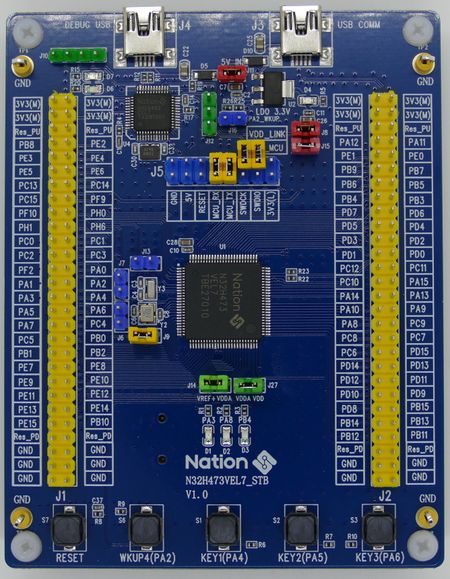

This article describes specifics for the Nations N32H473VEL7_STB evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J5 | 2 | 3V3(L) |
| GND | J5 | 16 | GND |
| TMS/SWDIO | J5 | 4 | SWDIO |
| TCK/SWCLK | J5 | 6 | SWCLK |
| RESET | J5 | 12 | RESET |
- Power the board via Mini-USB connector (J4)

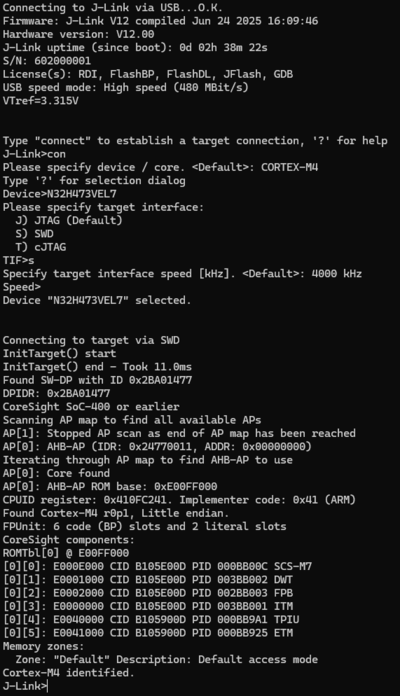

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nations N32H473VEL7_STB.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.24
- Hardware: Nations N32H473VEL7_STB
- Link: File:Nations N32H473VEL7 STB TestProject ES V824.zip
