Nations N32G033K8Q7-1 STB
Jump to navigation
Jump to search

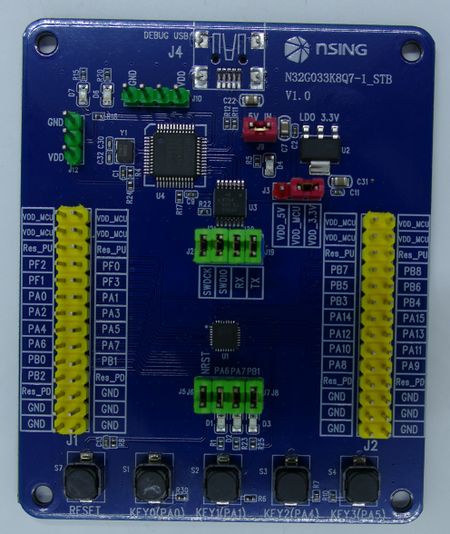

This article describes specifics for the Nations N32G033K8Q7-1_STB evaluation board.
Preparing for J-Link
- Connect the J-Link to these pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J3 | - | VDD |
| GND | J10 | - | GND |
| TMS/SWDIO | J21 | 2 | SWDIO |
| TCK/SWCLK | J22 | 2 | SWDCK |
- Power the board via Mini-USB (J4)

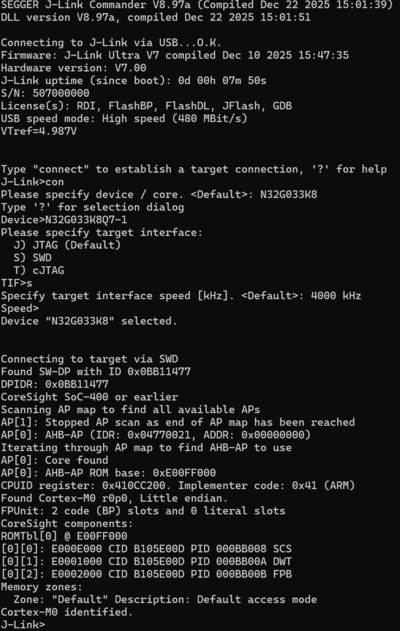

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nations N32G033K8Q7-1_STB.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.26
- Hardware: Nations N32G033K8Q7-1_STB
- Link: File:Nations N32G033K8Q7-1 TestProject ES V826.zip
