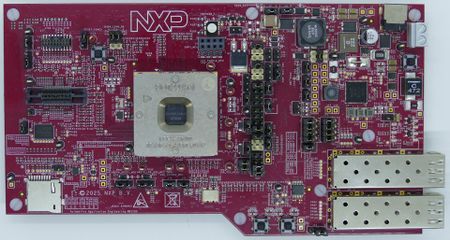

NXP XS32K5XXCVB-Q437

This article describes specifics for the NXP XS32K5XXCVB-Q437 socket board.

Preparing for J-Link

• Connect the J-Link to the 20-pin connector (J17)
• Leave J18 open, in order to use an external debug probe
• Power the board via barrel connector with 12V (J14)
• VTref is measured incorrectly by the board. VTref must be set fixed at 3.3 V, e.g. through the J-Link Commander "vtref 3300" command.

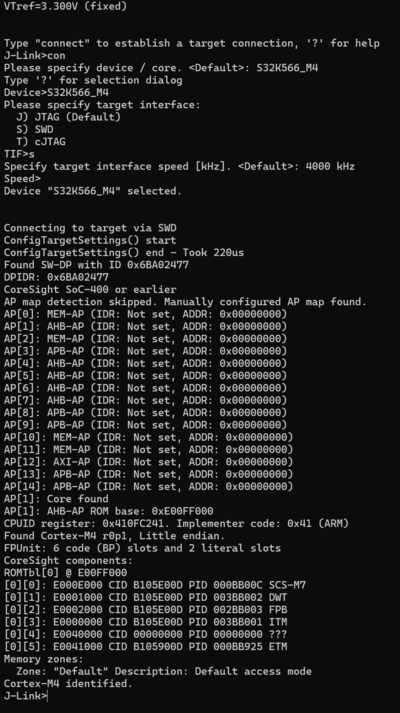

• Verify the connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP XS32K5XXCVB-Q437.
It is a simple Hello World sample linked to run from internal flash.

SETUP

• Embedded Studio: V8.30a
• Hardware: NXP XS32K5XXCVB-Q437
• Link: File:NXP S32K566 M4 TestProject ES V830a.zip
