NXP X-KW45B41Z

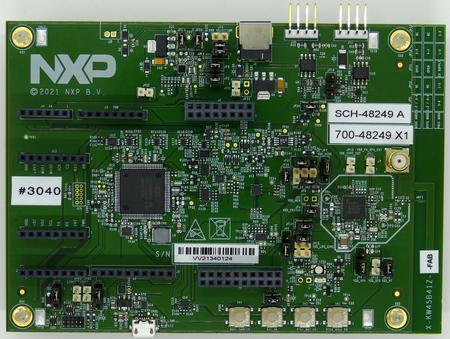

This article describes specifics for the NXP KW45B41Z evaluation board. The board supports different Upgrade boards. It can be used to test & verify NXP KW45 and NXP K32W14 support.

Minimum requirements

• J-Link software V7.7 or later

Preparing for J-Link

• Make sure that you install the correct "Upgrade Board"
• Put a Jumper on J22 to activate the debug interface
• Connect the J-Link to the SWD header (J16)
• Power the board via external power supply (J14)
• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP KW45B41Z. It is a simple Hello World sample linked into the internal flash.

SETUP

TBD
