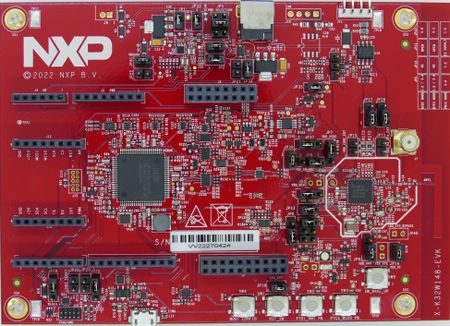

NXP X-K32W148-EVK

This article describes specifics for the NXP X-K32W148-EVK evaluation board.

Preparing for J-Link

• Put a Jumper on JP22 to activate the debug interface
• Connect the J-Link to the 10-Pin SWD header (J16)
• Power the board via micro USB (J14)

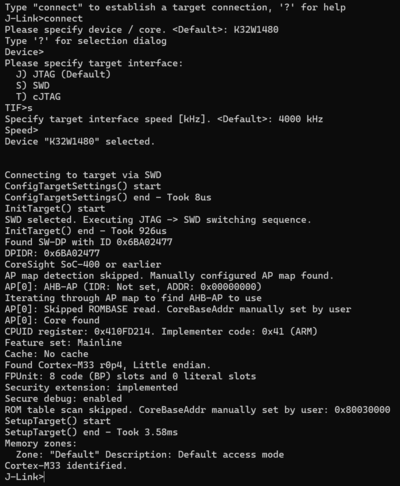

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP X-K32W148-EVK.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.30
• Hardware: NXP X-K32W148-EVK
• Link: File:NXP K32W1480 TestProject ES V830.zip
