NXP X-IMX91LP4EVK-11

This article describes specifics for the NXP X-IMX91LP4EVK-11 evaluation board.

Preparing for J-Link

• Connect the J-Link to JTAG connector (J1405).
• Power the board via USB Type-C Power connector (J301).
• Turn on the power switch (SW301).

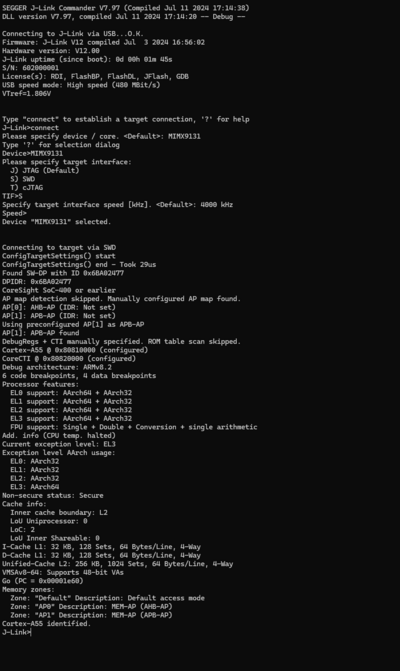

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP X-IMX91LP4EVK-11.
It is a simple Hello World sample linked into the internal OCRAM memory.

SETUP

• Embedded Studio: V8.14
• Hardware: NXP X-IMX91LP4EVK-11
• Link: File:NXP X-IMX91LP4EVK-11 TestProject ES V814.zip
