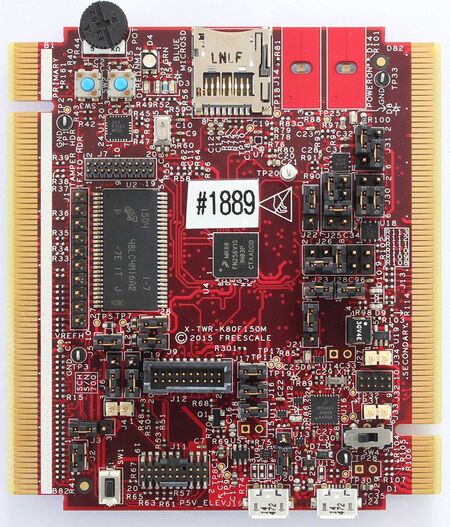

NXP TWR-K80F150M

This article describes specifics for the NXP TWR-K80F150M evaluation board.

Preparing for J-Link

• Connect the J-Link to the SWD header (J11) on the board.
• Power the board via USB (J19)

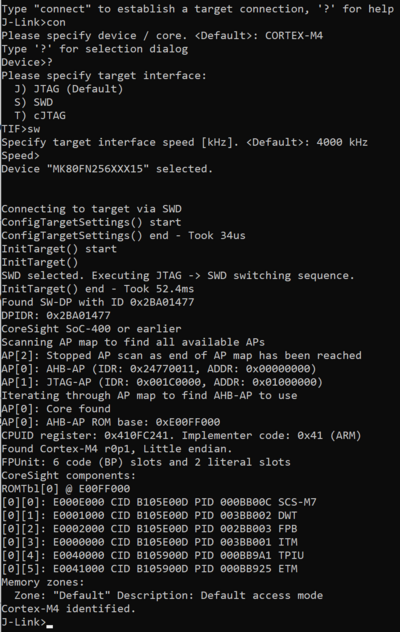

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP TWR-K80F150M.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.22a
• Hardware: NXP TWR-K80F150M
• Link: File:NXP TWR-K80F150M TestProject ES V820.zip
