This article describes specifics for the NXP SLN-SBUI-IOT evaluation board.

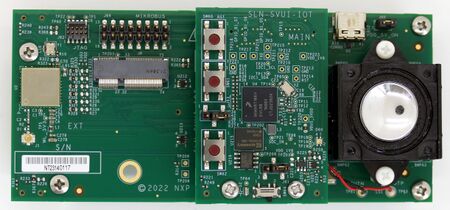

NXP SLN-SBUI-IOT iMIMXRT106VDVL6B board.jpg

Preparing for J-Link

  • Connect the J-Link to J62.
  • Power the board via B1.

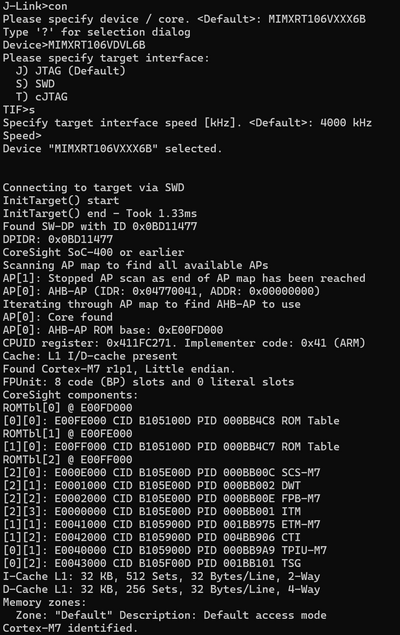

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

NXP iMIMXRT106VDVL6B connect.png
