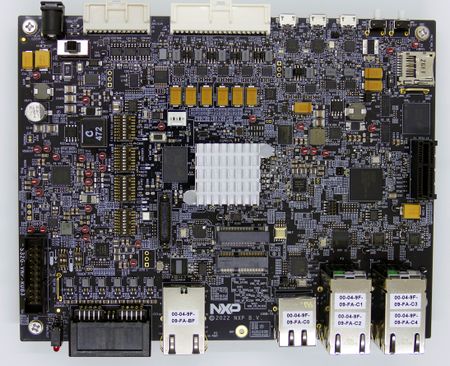

This article describes specifics for the NXP S32G-VNP-RDB3 evaluation board.
Preparing for J-Link
- Connect the J-Link to JTAG (J48)
- Power the board via J176 (12V)

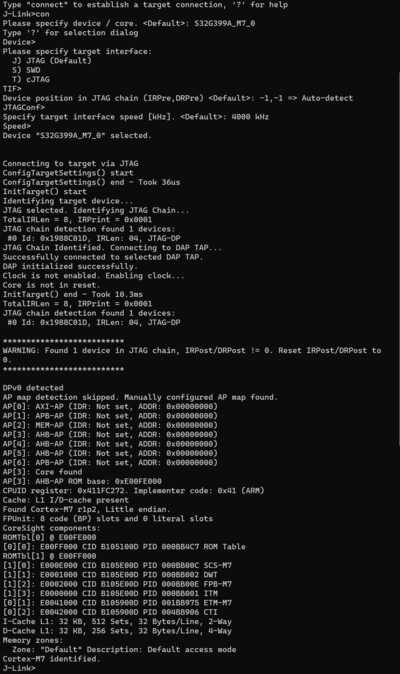

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP S32G-VNP-RDB3 Cortex-M7_0.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.26
- Hardware: NXP S32G-VNP-RDB3
- Link: File:NXP S32G3 TestProject ES V826.zip
