NXP NHS3100TEMODB
Jump to navigation
Jump to search

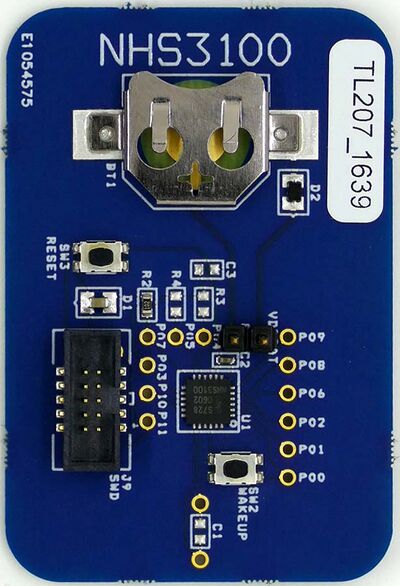

The NXP NHS3100TEMODB is a NHS3100 evaluation board.
Preparing for J-Link
- Connect your J-Link to the SWD header (J9)
- Power the board via battery.

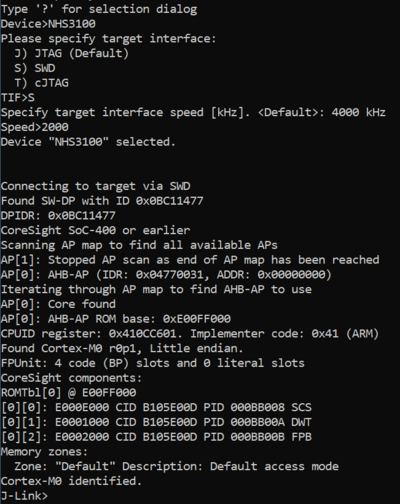

- Verify the Connection with J-Link Commander. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NHS3100. It outputs "Hello World!" to the Debug Terminal in a loop.
Setup
- J-Link software: V8.12
- Embedded Studio: V8.16
- Hardware: NXP NHS3100
- Link: File:NXP NHS3100 HelloWorld.zip
