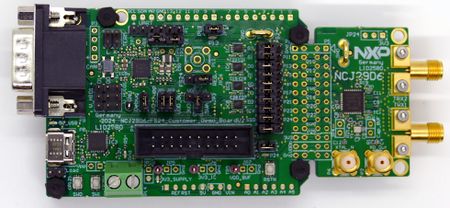

This article describes specifics for the NXP NCJ29D6 LID580 evaluation board.
NXP NCJ29D6 board.jpg

Preparing for J-Link

  • Connect the J-Link to P4.
  • Power the board via P8.

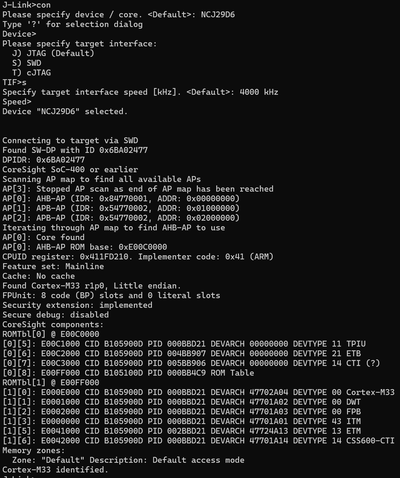

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

NXP NCJ29D6 connect.png
