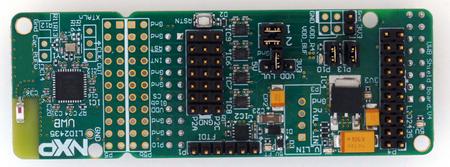

This article describes specifics for the NXP NCJ29D5 UWB Shield Board V4 evaluation board.
Preparing for J-Link
- Connect the J-Link to P4
- Power the board via P3 (Pin2 = 12V Pin4 = GND)
- Connect JP3 to GND (middle position)

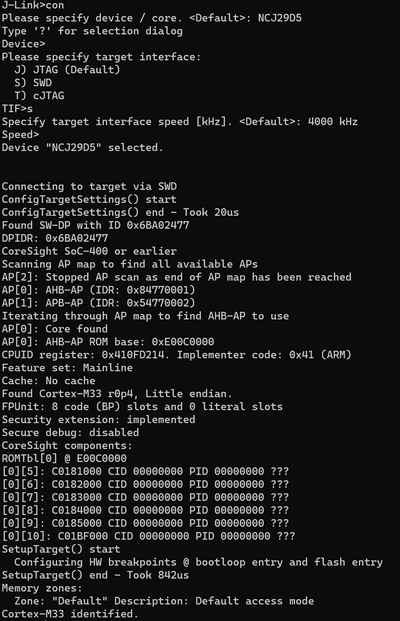

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP NCJ29D5 UWB Shield Board V4].
It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: V7.88d
- Embedded Studio: V6.34
- Hardware: NXP NCJ29D5 UWB Shield Board V4
- Link: File:NXP LID2435 NCJ29D5 TestProject ES V634.zip
