This article describes specifics for the NXP KW-MCXW-EVK-MB evaluation board with mounted X-KW47-001-M10 daughter board.

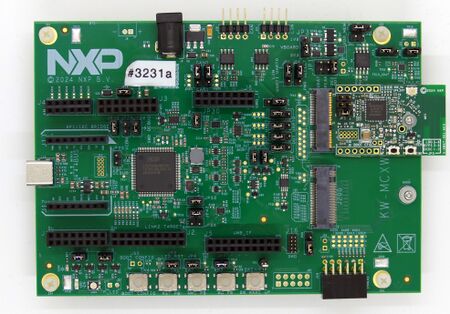

NXP KW-MCXW-EVK-MB X-KW47-001-M10 KW47B43ZB7 board.jpg

Preparing for J-Link

  • Connect the J-Link to J16.
  • Power the board via USB J14 or J9.

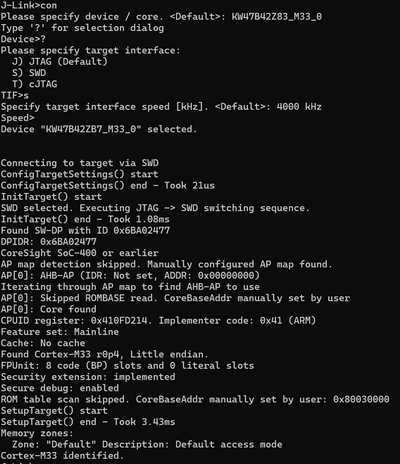

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

NXP KW-MCXW-EVK-MB X-KW47-001-M10 KW47B43ZB7 connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP KW-MCXW-EVK-MB.
It is a simple Hello World sample linked into the internal flash.

SETUP
