NXP IMX943LP4EVK-19

This article describes specifics for the NXP IMX943LP4EVK-19 evaluation board.

Preparing for J-Link

• Write the following boot image to the SD card with the offset of 32KB:File:iMX94 flash.bin


For example: dd if=iMX94_flash.bin of=/dev/sdb bs=1024 seek=32; sync

• Set boot from SD card mode (SW4)
• Connect the J-Link to JTAG connector (J16).
• Power the board via Power connector (P1).
• Turn on the power switch (SW1).

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

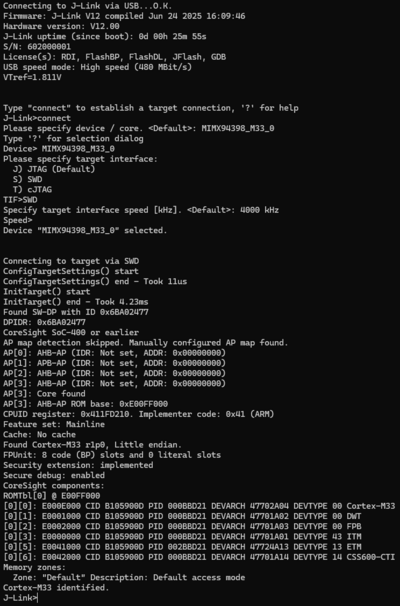

• Cortex-M33 connection:

• Cortex-M7 connection:

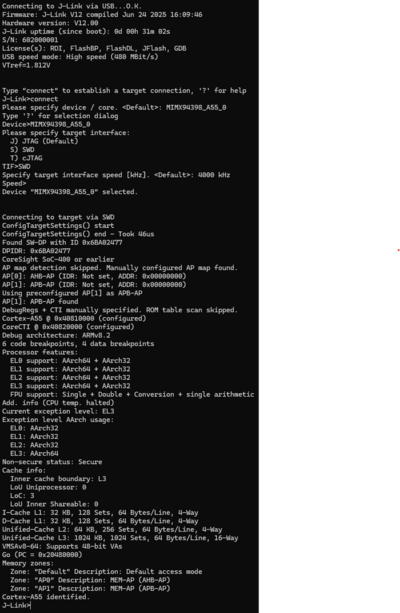

• Cortex-A55 connection:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP MCIMX93-EVK.
It is a simple Hello World sample linked into the internal flash.

Coretex-M33

SETUP

• Embedded Studio: V8.24
• Hardware: NXP IMX943LP4EVK-19
• Link: File:NXP IMX943LP4EVK-19 M33 TestProject ES V824.zip

Coretex-M7

SETUP

• Embedded Studio: V8.24
• Hardware: NXP IMX943LP4EVK-19
• Link: File:NXP IMX943LP4EVK-19 M7 TestProject ES V824.zip

Coretex-A55

SETUP

• Embedded Studio: V8.24
• Hardware: NXP IMX943LP4EVK-19
• Link: File:NXP IMX943LP4EVK-19 A55 TestProject ES V824.zip
