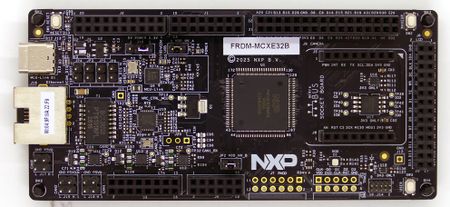

This article describes specifics for the NXP FRDM-MCXE32B evaluation board.
Preparing for J-Link
- Connect the J-Link to J14.
- Power the board via J13 / MCU-Link.

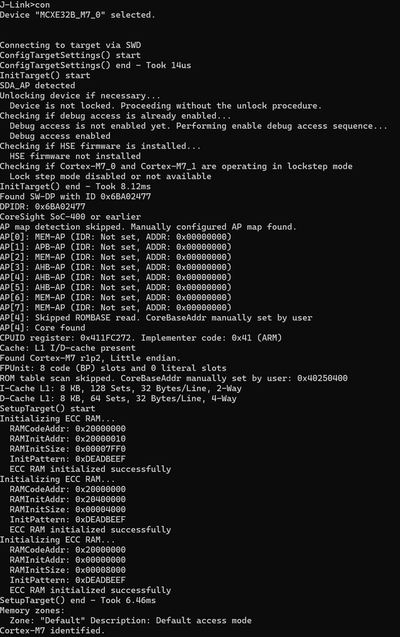

- Verify the connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP FRDM-MCXE32B.
It is a simple Hello World sample linked to run from internal flash.
SETUP
- Embedded Studio: V8.28
- Hardware: NXP FRDM-MCXE32B
- Link: File:NXP MCXE32B TestProject ES 8V28.zip
