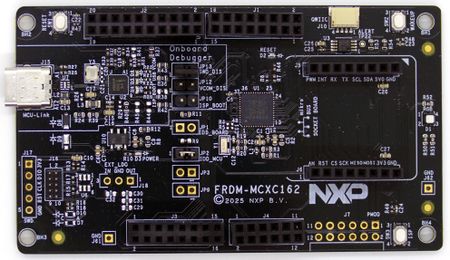

This article describes specifics for the NXP FRDM-MCXC162 evaluation board.
Preparing for J-Link
- Connect the J-Link to J16.
- Power the board via J15.

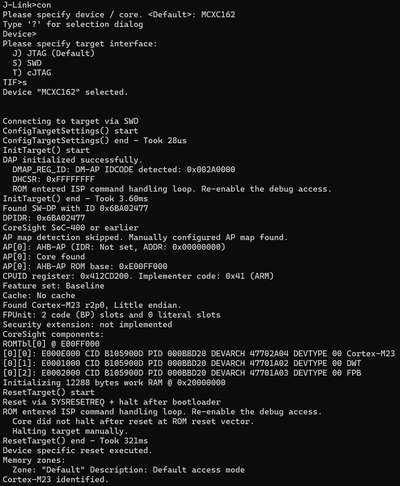

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP FRDM-MCXC162.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: NXP FRDM-MCXC162
- Link: File:NXP MCXC162 TestProject ES 7V20.zip
