NXP FRDM-MCXA577
Jump to navigation
Jump to search

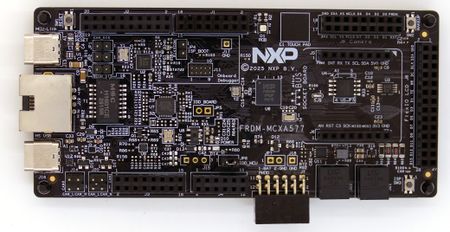

This article describes specifics for the NXP FRDM-MCXA577 evaluation board.
Preparing for J-Link
- Connect the J-Link to J11
- Power the board via USB

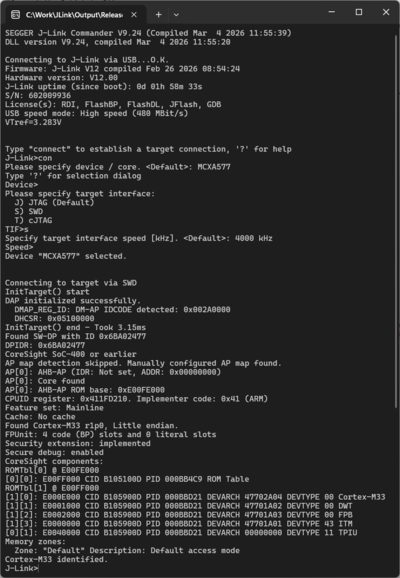

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP FRDM-MCXA577.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.26b
- Hardware: NXP FRDM-MCXA577
- Link: File:NXP FRDM-MCXA577 TestProject ES V826b.zip
