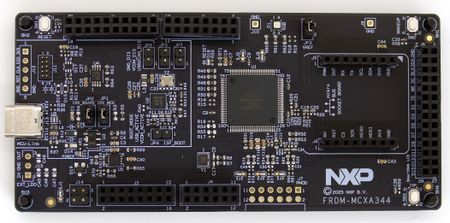

NXP FRDM-MCXA344

This article describes specifics for the NXP FRDM-MCXA344 evaluation board.

Preparing for J-Link

• Connect the J-Link to J24, JP8 hast to set in order to disable MCU-Link on the PCB and work with J-Link.
• Power the board via USB J21.

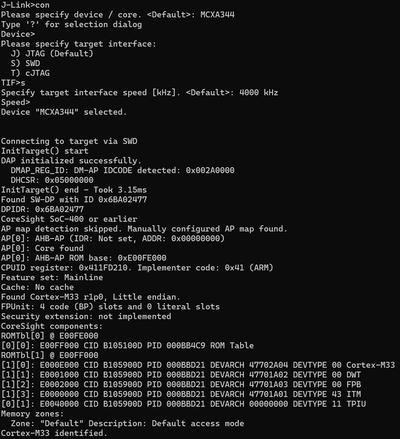

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP FRDM-MCXA344.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V7.20
• Hardware: NXP FRDM-MCXA344
• Link: File:NXP MCXA344 TestProject ES 7V20.zip
