NXP FRDM-IMXRT700

From SEGGER Knowledge Base
Jump to navigation Jump to search

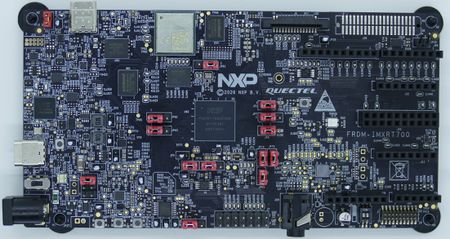

This article describes specifics for the NXP FRDM-IMXRT700 evaluation board.

NXP FRDM-IMXRT700.jpg

Preparing for J-Link

  • Connect the J-Link to the FRDM-IMXRT700 via J18 (20pin).
  • Power the board via J45 (5V Barrel connector).

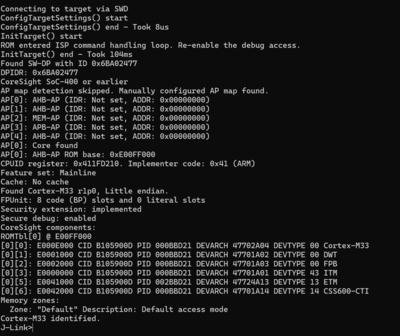

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

NXP PIMXRT798SGVKB CONNECT.PNG
