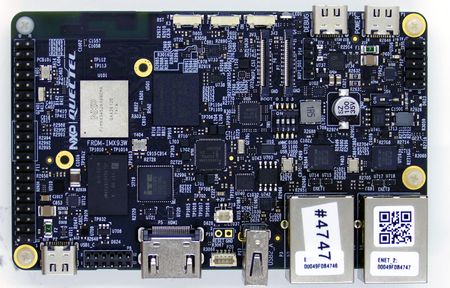

NXP FRDM-IMX93W
This article describes specifics for the NXP FRDM-IMX93W evaluation board.
Overview
On NXP FRDM-IMX93W evaluation board, access to the debug subsystem remains disabled until the device completes the initial boot process from a boot medium, such as an SD card. The SD-card image, used in this guide contains U-Boot SPL loader, which performs the required device initialization, including DDR setup and activation of the additional processor cores. The executable images for the individual cores are replaced with small infinite-loop programs. After initialization, each core enters a controlled idle loop without running an application. At this point, JTAG access is available, and a debugger can connect to the required core, load an application into internal RAM or DDR, configure the execution context, and start debugging. This boot flow is used only for demonstration purposes and should not be considered as a development guide.
Preparing for J-Link
- Make sure you have a microSD card. If no microSD card is included in the board package, use a compatible one with the following recommended specifications: SDHC, 4 GB (the device's SD controller may not support memory cards lower than SDHC.).
- Write the following boot image: imx93_flash_a0.bin with an offset of 32KB from start to the microSD card, as described here: Creating a bootable SD Card.
- Make sure the board is powered off and insert the prepared microSD card into the card slot of the board.
- Enable booting from the microSD card by setting the switches on the board as follows:
| Switch | State |
|---|---|
| SW1-1 | ON |
| SW1-2 | ON |
| SW1-3 | OFF |
| SW1-4 | OFF |
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | P14 | 1 | VCC |
| GND | P14 | 4 | GND |
| TMS/SWDIO | P14 | 3 | SWDIO |
| TCK/SWCLK | P14 | 2 | SWCLK |
- Power the board via USB Type-C Power connector (P1).
- Verify the Connection with e.g. J-Link Commander. The output should look as follows:

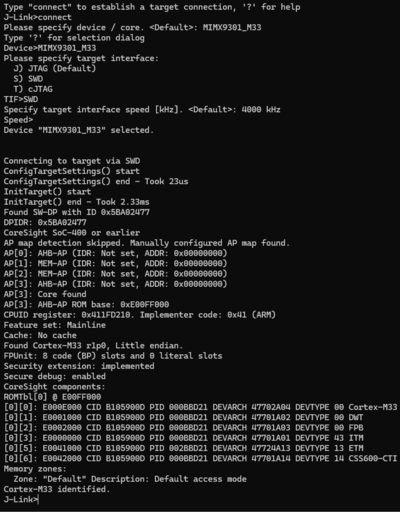

- Cortex-M33 connection:

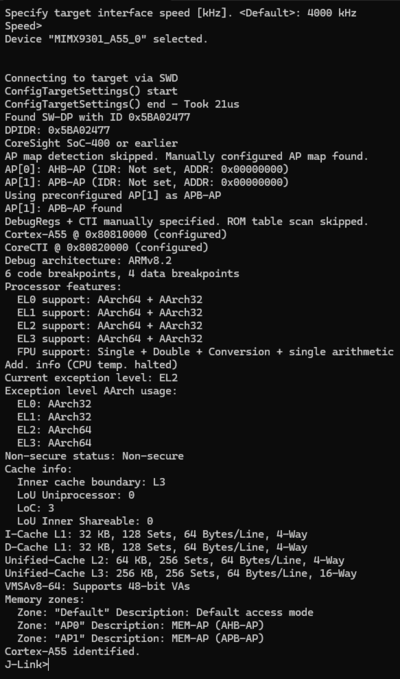

- Cortex-A55 connection:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the NXP FRDM-IMX93W.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.28a
- Hardware: NXP FRDM-IMX93W
Cortex-A55
Cortex-M33
Tracing on NXP iMX93
This section describes how to get started with trace on the NXP iMX93 MCUs. This section assumes that there is already a basic knowledge about trace in general (what is trace, what different implementations of trace are there, etc.). If this is not the case, we recommend to read Trace chapter in the J-Link User Manual (UM08001).
Some of the examples are shipped with a compiled .JLinkScriptfile (extension .pex), should you need the original source, please get in touch with SEGGER directly via our support system: https://www.segger.com/ticket/.
To create your own .JLinkScriptfile you can use the following guide as reference: How_to_configure_JLinkScript_files_to_enable_tracingMinimum requirements
In order to use trace on the NXP iMX93 MCU devices, the following minimum requirements have to be met:
- J-Link software version V9.60 or later
- Ozone V3.40j or later (if streaming trace and / or the sample project from below shall be used)
- J-Link Plus V12 or later for buffer (on-chip) trace
To rebuild the project our IDE Embedded Studio can be used. The recommended version to rebuild the projects is V8.28. But the examples are all prebuild and work out-of-the box with Ozone, so rebuilding is not necessary.
Trace examples
Trace examples (buffer trace) for NXP iMX93 device can be found here: Tracing on NXP iMX93
If additional examples/configurations are required, please get in touch with SEGGER directly via our support system: https://www.segger.com/ticket/.
