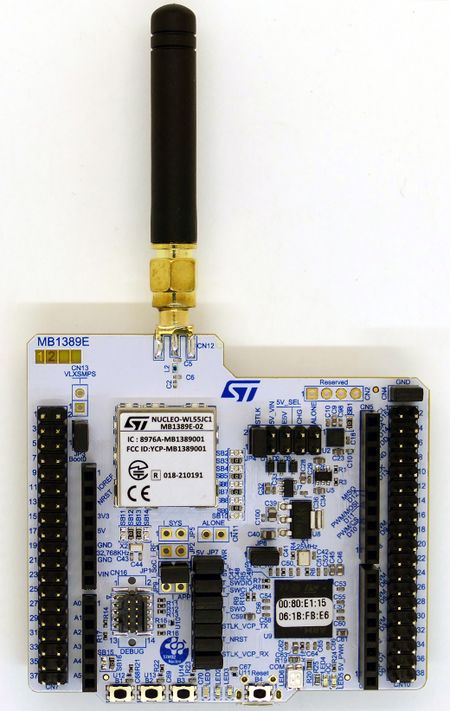

This article describes specifics for the ST NUCLEO-WL55CJ1 evaluation board.
Preparing for J-Link
- Connect the J-Link to CN16
- Power the board via CN1

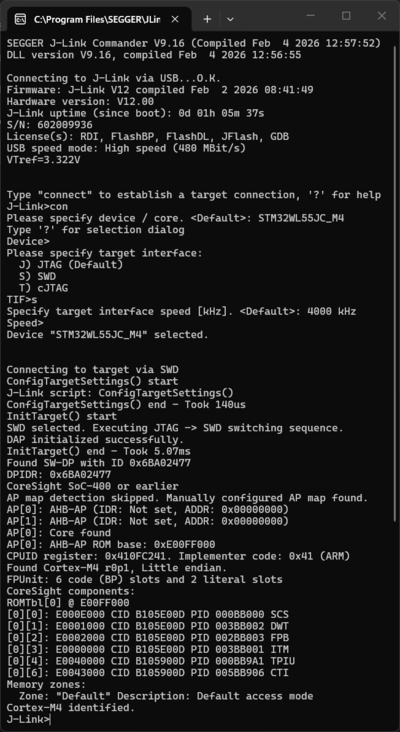

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-WL55JC1.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.24
- Hardware: ST NUCLEO-WL55JC1
- Link: File:ST NUCLEO-WL55JC1 TestProject ES V824.zip
