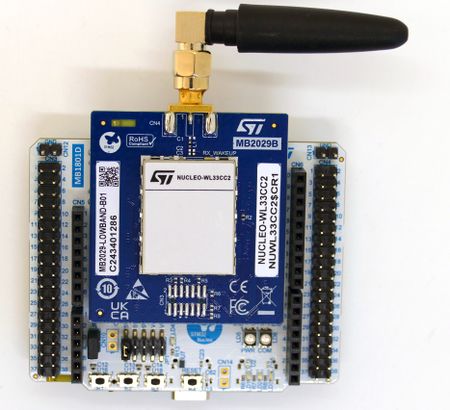

This article describes specifics for the ST NUCLEO-WL33CC2 evaluation board.
Preparing for J-Link
- Connect the J-Link to CN17
- Disable the STLink using JP4
- Power the board via CN15

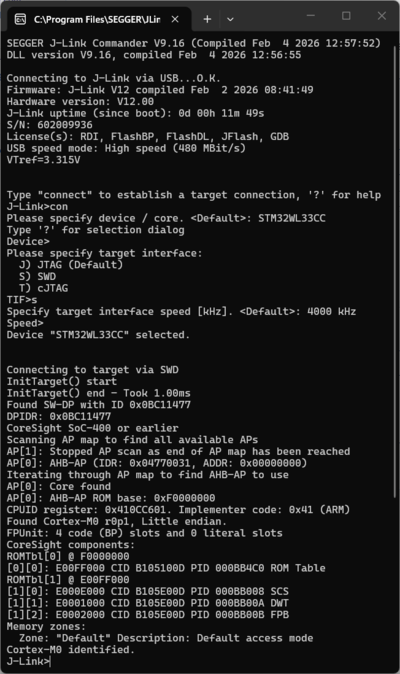

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-WL33CC2.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.26b
- Hardware: ST NUCLEO-WL33CC2
- Link: File:ST NUCLEO-WL33CC2 TestProject ES V826b.zip
