NUCLEO-L412KB

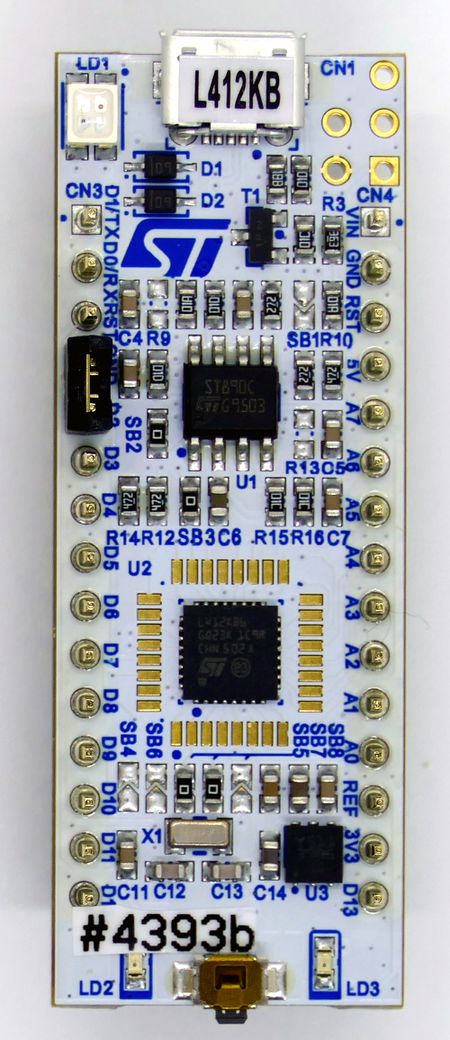

This article describes specifics for the ST NUCLEO-L412KB evaluation board.

Preparing for J-Link

• Power the board via CN1
• Reflash the ST-LINK On-Board Into a J-Link Guide

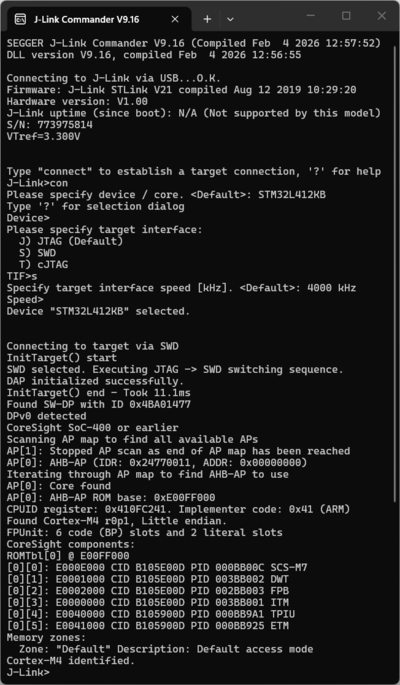

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-L412KB.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.26b
• Hardware: ST NUCLEO-L412KB
• Link: File:ST NUCLEO-L412KB TestProject ES V826b.zip
